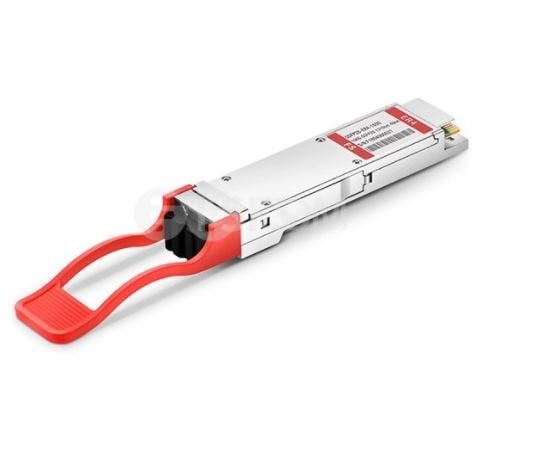

100GBASE-ER4 QSFP28 1310nm 40km Module, Cisco Compatible
Non-returnable
$4 456.00
Cisco QSFP-100G-ER4L-S Compatible 100GBASE-ER4 QSFP28 Optical Transceiver Module for Ethernet and Data Center (SMF, 1310nm, 40km, LC, DOM)
The Cisco QSFP-100G-ER4L-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connector. It provides high-density and low-power 100GBASE Ethernet solution for data centers, high-performance computing networks,enterprise core and distribution layer applications. It is fully compliant with the QSFP28 MSA and IEEE 802.3ba 100GBASE-ER4 Lite standard.
Product Details
Specifications
| Cisco Compatible | QSFP-100G-ER4L-S | Vendor Name | FS |
| Form Factor | QSFP28 | Max Data Rate | 103.1Gbps |
| Wavelengths | 1296nm, 1300nm, 1305nm, 1310nm | Max Cable Distance | 25km-40km@SMF* |
| Connector | LC Duplex | Media | SMF |
| Transmitter Type | 4x EML | Receiver Type | APD |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -2.9~4.5dBm | Receiver Sensitivity | <-20.9dBm |
| Power Consumption | 4.5W | Extinction Ratio | 4dB |
| Modulation Format | NRZ | CDR | TX and RX |
| Transmit and Dispersion Penalty | 2.5dB | Powerbudget | 18dB |
| Packaging Technology | BOX Packaging | FEC Function | Supported |
| Protocols | QSFP28 MSA Compliant | Application | 100GBASE Ethernet, Data Center |
General Transceiver
- Compatible BrandsCisco
- Data Rate100G
- Form FactorQSFP28
- MediaSMF
- ConnectorLC
- TemperatureCommercial (0 to 70°C)
- Max Distance40km
