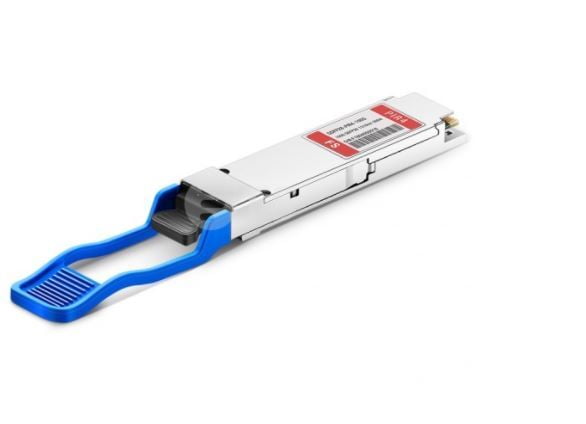

100GBASE-LR4 QSFP28 1310nm 10km Industrial Module, Cisco Compatible
$1 399.00
Cisco QSFP-100G-LR4-I Compatible 100GBASE-LR4 QSFP28 Optical Transceiver Module for Data Center, Ethernet and Telecom (SMF, 1310nm, 10km, LC, Industrial, DOM)
The Cisco QSFP-100G-LR4-I Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connector. It provides 100GBASE Ethernet connectivity option for telecom, service provider applications and also 5G wireless network, suitable for both outdoor and indoor deployments. It is fully compliant with the QSFP28 MSA and IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4 standard.
Product Details
Specifications
| Cisco Compatible | QSFP-100G-LR4-I | Vendor Name | FS |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km@SMF |
| Connector | LC duplex | Media | SMF |
| Transmitter Type | LAN WDM EML | Receiver Type | PIN |
| DDM/DOM | Supported | Industrial Temperature Range | -40 to 85°C (-40 to 185°F) |
| TX Power | -4.3~4.5dBm | Receiver Sensitivity | <-10.6dBm |
| Power Consumption | 4W | Extinction Ratio | 4dB |
| Modulation Format | NRZ | CDR | TX and RX |
| Transmit and Dispersion Penalty | 2.2dB | Powerbudget | 8.5dB |
| Packaging Technology | BOX Packaging | FEC Function | Supported |
| Protocols | IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA Compliant | Application | 100GBASE Ethernet, Telecom, 5G Wireless Network |
General Transceiver
- Compatible BrandsCisco
- Data Rate100G
- Form FactorQSFP28
- MediaSMF
- ConnectorLC
- TemperatureCommercial (0 to 70°C)
- Max Distance10km
