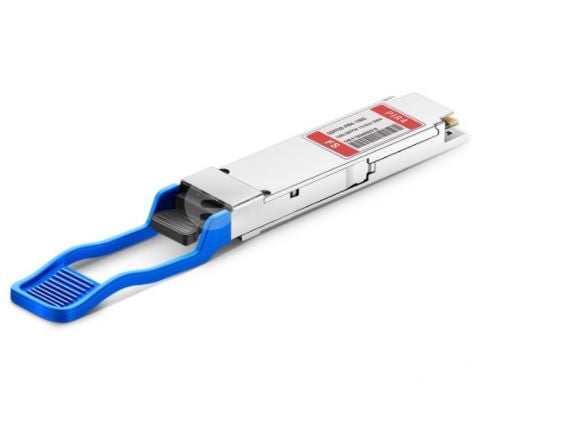

100GBASE-LR4 QSFP28 Dual Rate 1310nm 10km Module, Cisco Compatible
$1 399.00
Cisco QSFP-100/112G-LR4 Compatible 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate Optical Transceiver Module for Telecom (SMF, 1310nm, 10km, LC, DOM)
The Cisco QSFP-100/112G-LR4 Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connector. It provides 100GBASE Ethernet and OTU4 connectivity option for telecom, service provider applications and 5G wireless network. It is fully compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standard.
Product Details
Specifications
| Cisco Compatible | QSFP-100/112G-LR4 | Vendor Name | FS |
| Form Factor | QSFP28 | Data Rate | Dual Rate 103.1Gbps and 112Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km@SMF |
| Connector | LC duplex | Media | SMF |
| Transmitter Type | 4 x LAN WDM DML TOSA | Receiver Type | 4 x PIN ROSA |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power(100G) | -4.3~4.5dBm | Receiver Sensitivity(100G) | <-8.6dBm |
| TX Power(112G) | -0.6~4dBm | Receiver Sensitivity(112G) | <-8.4dBm |
| Power Consumption | 3.5W | Extinction Ratio | 4dB |
| Modulation Format | NRZ | CDR | TX and RX |
| Transmit and Dispersion Penalty | 2.2dB | Powerbudget | 6.3dB |
| Packaging Technology | BOX Packaging | FEC Function | Supported |
| Protocols | 100G Ethernet, 25G Ethernet, OTN OTU4 4I1-9D1F | Application | 100GBASE Ethernet, Telecom, 5G Network Mid/Backhaul |
General Transceiver
- Compatible BrandsCisco
- Data Rate100G
- Form FactorQSFP28
- MediaSMF
- ConnectorLC
- TemperatureCommercial (0 to 70°C)
- Max Distance10km
