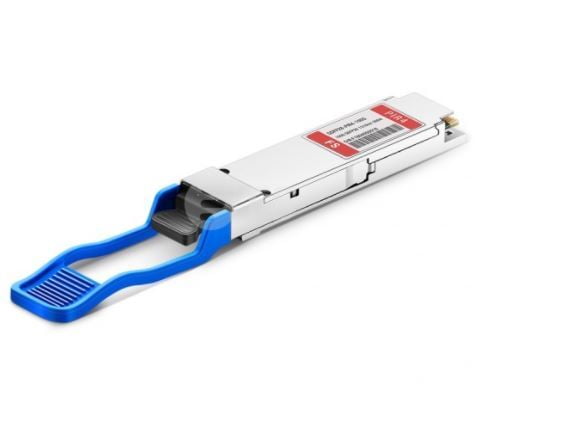

100GBASE-PSM4 QSFP28 1310nm 500m Module, Cisco Compatible
$483.00
Cisco QSFP-100G-PSM4-S Compatible 100GBASE-PSM4 QSFP28 Optical Transceiver Module for Ethernet and Data Center (SMF, 1310nm, 500m, MTP/MPO, DOM)
The Cisco QSFP-100G-PSM4-S Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 500m over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. It provides high-density and low-power 100GBASE Ethernet solution for data centers, high-performance computing networks,enterprise core and distribution layer applications. It is fully compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-PSM4 standard.
Product Details
Specifications
| Cisco Compatible | QSFP-100G-PSM4-S | Vendor Name | FS |
| Form Factor | QSFP28 | Max Data Rate | 103.1 Gbps |
| Wavelength | 1310nm | Max Cable Distance | 500m@SMF |
| Connector | MTP/MPO-12 | Media | SMF |
| Transmitter Type | 4x DFB | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -9.4~2dBm | Receiver Sensitivity | <-12.66dBm |
| Power Consumption | 3.5W | Extinction Ratio | 3.5dB |
| Modulation Format | NRZ | CDR | TX and RX |
| Transmit and Dispersion Penalty | 2.9dB | Powerbudget | 3.2dB |
| Packaging Technology | COB (chip on board) Packaging | FEC Function | Supported |
| Protocols | QSFP28 MSA Compliant | Application | 100GBASE Ethernet, Data Center |
General Transceiver
- Compatible BrandsCisco
- Data Rate100G
- Form FactorQSFP28
- MediaSMF
- ConnectorMTP/MPO-12
- TemperatureCommercial (0 to 70°C)
- Max Distance500m
