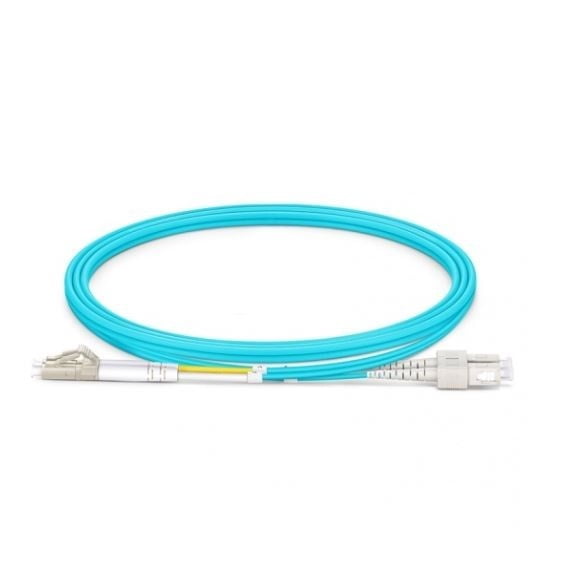

1m (3ft) LC UPC to SC UPC Duplex OM3 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
$6.00 - $14.00
High Quality and Cost-Effective 50/125μm OM3 Multimode Bend Insensitive Fiber Optic Cable
The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
Product Details
Specifications
| Connector Type | LC to SC | Polish Type | UPC to UPC |
| Fiber Count | Duplex | Fiber Mode | OM3 50/125μm |
| Wavelength | 850/1300nm | 10G Ethernet Distance | 300m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Cable Jacket | PVC | Cable Diameter | 2.0mm |
| Polarity | A(Tx) to B(Rx) | Operating Temperature | -20~70°C |
General
- TypeOM3 10Gb 50/125 Multimode
- Type de FibreOM3 50/125 MMF
- Nombre de FibresDuplex
- Type de ConnecteurLC-SC
- Type de PolissageUPC/UPC
