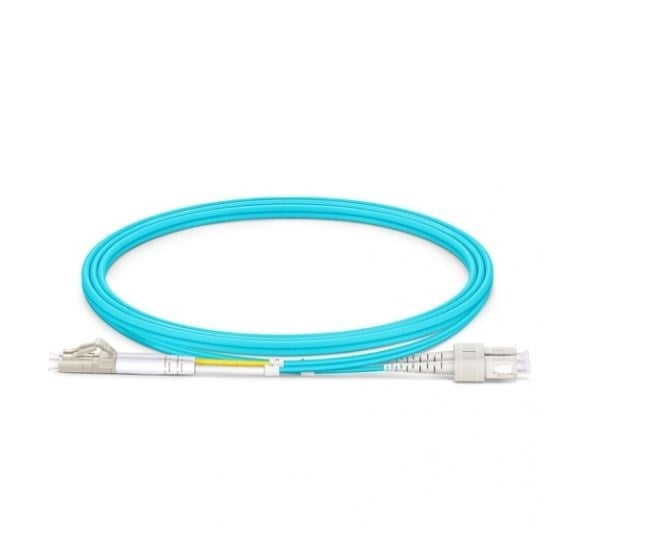

1m (3ft) LC UPC to SC UPC Duplex OM4 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
$6.50 - $24.00
High Quality and Cost-Effective 50/125μm OM4 Multimode Bend Insensitive Fiber Optic Cable
The 50/125μm OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.
Product Details
Specifications
| Connector Type | LC to SC | Polish Type | UPC to UPC |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| 40G Ethernet Distance | 150m at 850nm | 100G Ethernet Distance | 100m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Fiber Count | Duplex | Cable Diameter | 2.0mm |
| Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
General
- TypeOM4 40/100Gb 50/125 Multimode
- Type de FibreOM4 50/125 MMF
- Nombre de FibresDuplex
- Type de ConnecteurLC-SC
- Type de PolissageUPC/UPC
