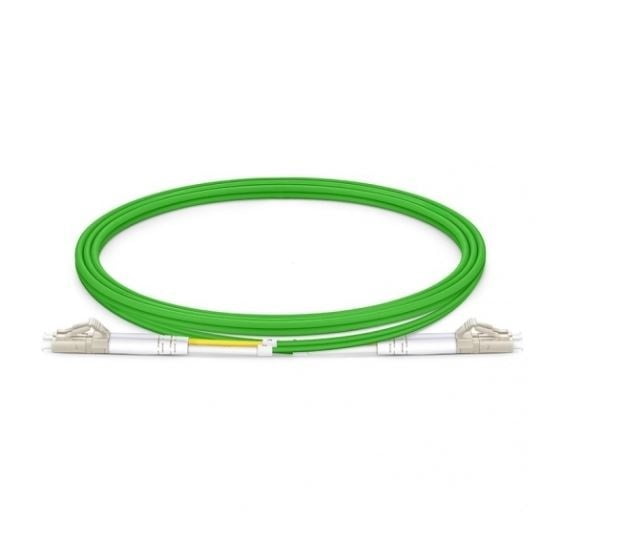

2m (7ft) LC UPC to LC UPC Duplex OM5 Multimode Wideband PVC (OFNR) 2.0mm Fiber Optic Patch Cable
$7.40 - $22.00
High Quality and Cost-effective 50/125μm OM5 Wideband Multimode Bend Insensitive Fiber Optic Cable
OM5 wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.
OM5 meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.
Product Details
Specifications
| Connector Type | LC to LC | Polish Type | UPC to UPC |
| Fiber Mode | OM5 50/125μm | Wavelength | 850/1300nm |
| 40G Ethernet Distance | 440m at 850nm | 100G Ethernet Distance | 150m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Effective Modal Bandwidth (at 850nm) | ≥4700 MHz·km | Effective Modal Bandwidth (at 953nm) | ≥2470 MHz·km |
| Fiber Count | Duplex | Cable Diameter | 2.0mm |
| Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
| Operating Temperature | -20~70°C | Storage Temperature | -40~80°C |
General
- TypeOM5 40G/100G 50/125 Multimode
- Type de FibreOM5 50/125 MMF
- Nombre de FibresDuplex
- Type de ConnecteurLC-LC
- Type de PolissageUPC/UPC
