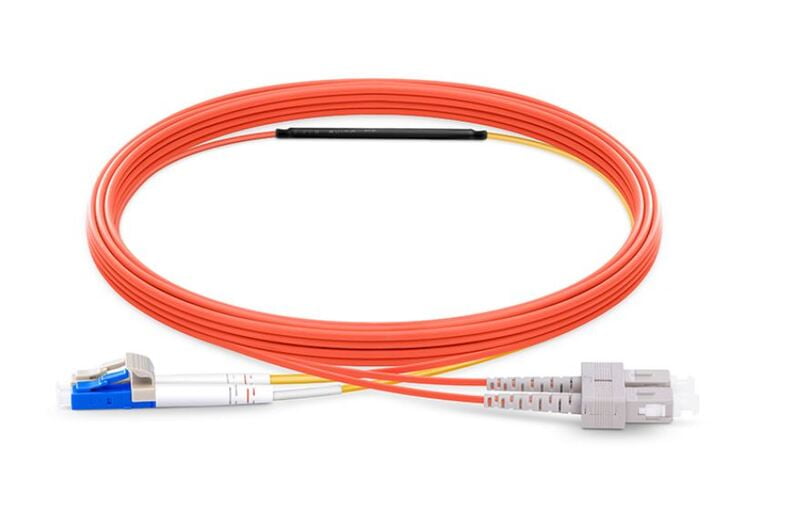

LC to SC OM2 Mode Conditioning Fiber Optic Patch Cable, 1m
$22.00 - $23.00
LC SM 9/125μm Equip to SC OM2 50/125μm Mode Conditioning Patch Cable
supplies standard and customized mode conditioning patch cables (MCP) in 62.5/125 and 50/125 , which are specified for 1000BASE-LX/LH and 10GBASE-LRM transceivers transmitting in the 1300nm window and applicated over multimode plants.
Launching a singlemode laser into the center of a multimode fiber can cause multiple signals to be generated that confuses the receiver at the other end of the fiber. These multiple signals, caused by Differential Mode Delay (DMD) effects, severely limit the cable distance lengths for operating Gigabit Ethernet. A mode conditioning patch cable eliminates these multiple signals by allowing the singlemode launch to be offset away from the center of a multimode fiber.
Product Details
Specifications
| Connector | LC to SC | Fiber Mode | 9/125μm and 50/125μm |
| Connector Polish | UPC to UPC | Operating Wavelength | 850nm and 1310nm |
| Insertion Loss | <0.5dB@1310nm (SM to MM Plus Connector loss) | Return Loss | >55dB (SM connector) |
| Coupled Power Ratio | 12dB≤CPR≤20dB | Jacket OD | 2.0mm |
| Jacket Material | PVC | Durability | 1000 times |
| Operating Temperature | -40 to 75°C | Storage Temperature | -40 to 85°C |
Cables
- Connector TypeLC to SC
- Fiber ModeOM2 50/125μm
- Cable JacketPVC
- Polish TypeUPC to UPC
- ColorOrange
