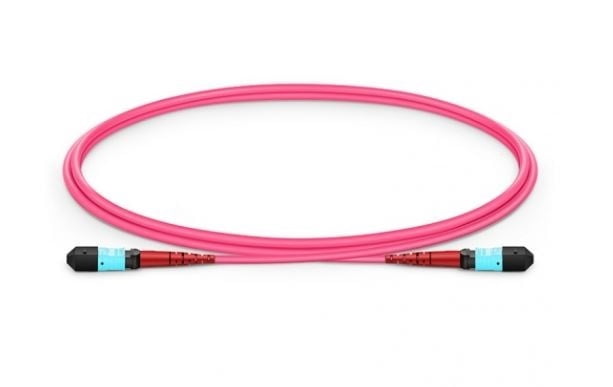

MTP®- 24 (Female) to MTP®- 24 (Female) OM4 Multimode Elite Trunk Cable, 24 Fibers, Type A, Plenum (OFNP), Magenta
$152.00 - $393.00
MTP® Female to MTP® Female OM4 Multimode Trunk Cable
MTP® trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP® Connectors and Corning Clearcurve Fiber, it is optimized for 100GBASE-SR10 CXP/CFP/CPAK optics direct connection and high-density data center applications.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
Product Details
Specifications
| Connector A | US Conec MTP® Female (Pinless) | Connector B | US Conec MTP® Female (Pinless) |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| 40/100G Ethernet Distance | 150m at 850nm | 10G Ethernet Distance | 400m at 850nm |
| Glass Fiber | Corning ClearCurve® | RoHS Compliancy Status | Compliant |
| Polish Type | UPC to UPC | Minimum Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3 dB/km | Attenuation at 1300nm | ≤0.6 dB/km |
| Jacket OD | 3.0mm | Cable Jacket | Plenum (OFNP) |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
* MTP® is a registered trademark of US Conec Ltd. US Conec and FS.COM partner on supplying high performance MTP® series products. Learn more.
MTP®/MPO Trunk Cables
- Fiber TypeOM4 50/125 MMF
- Connectivity100G SR10 CFP/CXP to SR10
- Fiber Count24 Fibers
- Polarity TypeType A
