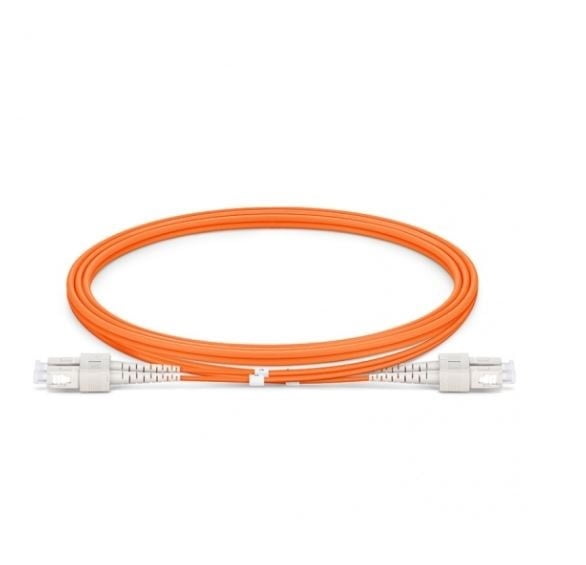

SC to SC UPC Duplex OM2 2.0mm PVC Fiber Patch Cable, 1m
$6.00 - $8.00
High Quality and Cost-effective 50/125μm OM2 Multimode Bend Insensitive Fiber Optic Cable
The 50/125μm OM2 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 50/125 OM2 multimode fiber optic cable is ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications.
Product Details
Specifications
| Connector Type | SC to SC | Polish Type | UPC to UPC |
| Fiber Count | Duplex | Fiber Mode | OM2 50/125μm |
| Wavelength | 850/1300nm | 1G Ethernet Distance | 550m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Cable Jacket | PVC | Cable Diameter | 2.0mm |
| Polarity | A(Tx) to B(Rx) | Operating Temperature | -20~70°C |
General
- TypeOM1/OM2 Multimode
- Type de FibreOM2 50/125 MMF
- Nombre de FibresDuplex
- Type de ConnecteurSC-SC
- Type de PolissageUPC/UPC
