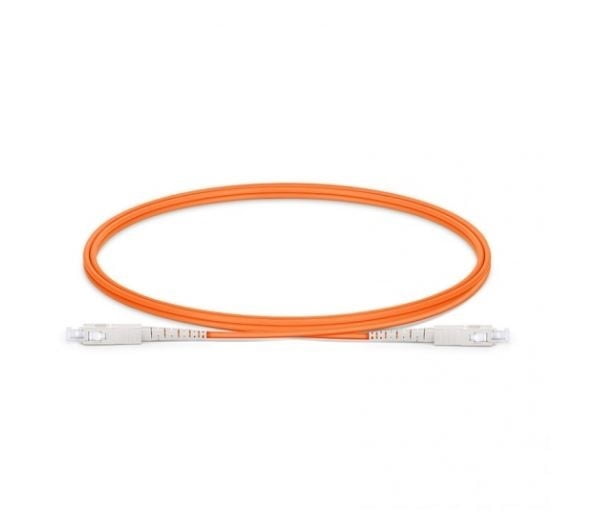

SC to SC UPC Simplex OM1 2.0mm PVC Fiber Patch Cable, 1m
Non-returnable
$3.40 - $4.60
High Quality and Cost-effective 62.5/125μm OM1 Multimode Fiber Optic Cable
The 62.5/125μm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.
This 62.5/125 OM1 multimode fiber optic cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.
Product Details
Specifications
| Connector Type | SC to SC | Polish Type | UPC to UPC |
| Fiber Count | Simplex | Fiber Mode | OM1 62.5/125μm |
| Wavelength | 850/1300nm | 1G Ethernet Distance | 280m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | G.651 | Minimum Bend Radius | 15mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Cable Jacket | PVC | Cable Diameter | 2.0mm |
| Polarity | A(Tx) to B(Rx) | Operating Temperature | -20~70°C |
General
- TypeOM1/OM2 Multimode
- Type de FibreOM1 62,5/125 MMF
- Nombre de FibresSimplex
- Type de ConnecteurSC-SC
- Type de PolissageUPC/UPC
