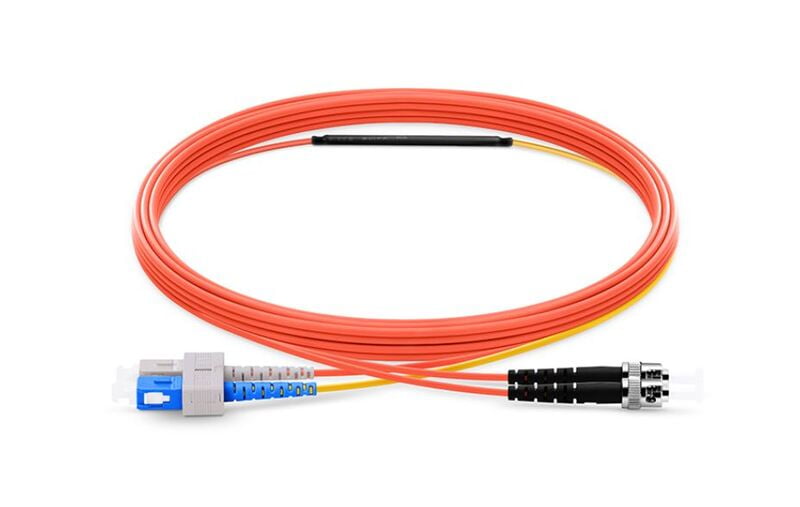

SC to ST OM2 Mode Conditioning Fiber Optic Patch Cable, 1m
SC to ST OM2 Mode Conditioning Fiber Optic Patch Cable, 1m
SC to ST OM2 Mode Conditioning Fiber Optic Patch Cable, 1m
SC to ST OM2 Mode Conditioning Fiber Optic Patch Cable, 1m
SC to ST OM2 Mode Conditioning Fiber Optic Patch Cable, 1m
SC to ST OM2 Mode Conditioning Fiber Optic Patch Cable, 1m

SC to ST OM2 Mode Conditioning Fiber Optic Patch Cable, 1m

$22.00 - $23.00
Out of stock Out of stock Out of stock
SC SM 9/125μm Equip to ST OM2 50/125μm Mode Conditioning Patch Cable

Supplies standard and customized mode conditioning patch cables (MCP) in 62.5/125 and 50/125 , which are specified for 1000BASE-LX/LH and 10GBASE-LRM transceivers transmitting in the 1300nm window and applicated over multimode plants.

Launching a singlemode laser into the center of a multimode fiber can cause multiple signals to be generated that confuses the receiver at the other end of the fiber. These multiple signals, caused by Differential Mode Delay (DMD) effects, severely limit the cable distance lengths for operating Gigabit Ethernet. A mode conditioning patch cable eliminates these multiple signals by allowing the singlemode launch to be offset away from the center of a multimode fiber.
Lenght:
Quantity
Add to Cart
Product Details
Specifications
ConnectorSC to STFiber Mode9/125μm and 50/125μm
Connector PolishUPC to UPCOperating Wavelength850nm and 1310nm
Insertion Loss<0.5dB@1310nm
(SM to MM Plus Connector loss)
Return Loss>55dB
(SM connector)
Coupled Power Ratio12dB≤CPR≤20dBJacket OD2.0mm
Jacket MaterialPVCDurability1000 times
Operating Temperature-40 to 75°CStorage Temperature-40 to 85°C

Cables
  • Connector Type
    SC to ST
  • Fiber Mode
    OM2 50/125μm
  • Cable Jacket
    PVC
  • Polish Type
    UPC to UPC
  • Color
    Orange
