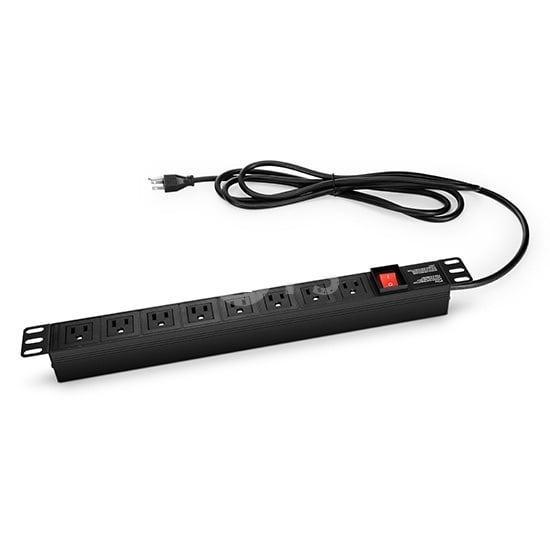

Single-Phase 15A/125V Basic PDU, 8 NEMA 5-15R Outlets, NEMA 5-15P Plug, 6.6ft Cord, 1U Rack-Mount
$41.00
Single-Phase 15A/125V Basic PDU, 8 NEMA 5-15R Outlets, NEMA 5-15P Plug, 6.6ft Cord, 1U Rack-Mount
Basic Power Distribution Unit (PDU) is a reliable and cost-effective way to deliver power from a UPS system, generator, or utility source to multiple devices by a single input with multiple output outlets. The Basic PDU Series includes models in 1U and 0U options, with versatile outlet arrangements on the front and/or back.
Product Details
Specifications
| PDU Type | Basic | Phase | Single-phase |
| Socket | 8 NEMA 5-15R | Plug | NEMA 5-15P |
| Rating Current | 15A | Rating Voltage | 125V |
| Load Capacity | 1.8kW | Frequency Compatibility | 50/60Hz |
| Cord length | 6.6ft (2m) | Material | Aluminium Alloy |
| Switch | Yes | Circuit Breaker | No |
| Indicators | Power LED | Surge Protection | No |
| No. of Rack Spaces | 1U | Dimensions (HxWxD) | 19.0"x1.75"x1.75" (482.6x44.5x44.5mm) |
| Mounting Method | Horizontal | Screws | Included |
PDU Power Strips
- PDU TypeBasic
- Mounting Type1U-Horizontal
- Plug TypeNEMA 5-15P
- Outlets Type5-15R
